PUSH SWITCH
8203Push switch
SPECIFICATION:
RATING :
5A 125/250VAC (UL,CUL)
5A 250VAC~μ 25T85 5E4 (ENEC)
INSULATION RESISTANCE : DC 500V 100MΩ OR MORE
CONTACT RESISTANCE : DC 2-4V 1A 100mΩ OR LESS
WITHSTAND VOLTAGE : AC 1500V FOR 1 Min
AMBIENT TEMPERATURE : -25℃ TO 85℃
ELECTRICAL LIFE : 50000 CYCLES

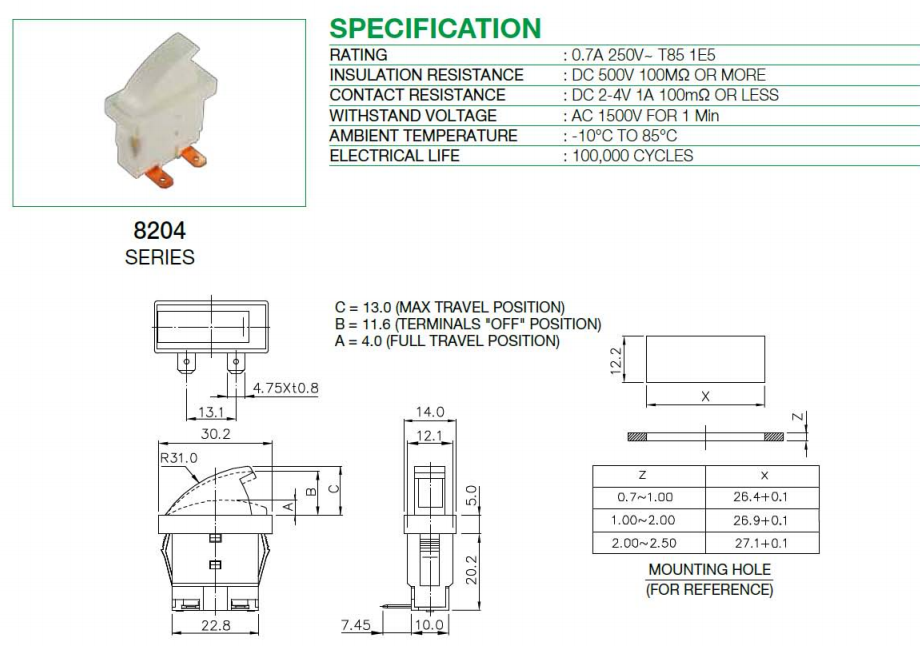

8204Push switch
SPECIFICATION:
RATING : 0.7A 250VAC T85 1E5
INSULATION RESISTANCE : DC 500V 100MΩ OR MORE
CONTACT RESISTANCE : DC 2-4V 1A 100mΩ OR LESS
WITHSTAND VOLTAGE : AC 1500V FOR 1 Min
AMBIENT TEMPERATURE : -10℃ TO 85℃
ELECTRICAL LIFE : 100,000 CYCLES
8210Push Switch
SPECIFICATION:
RATING : 0.3A/125V, 0.15A/250V, 0.5A/250V (ENEC)
INSULATION RESISTANCE : DC 500V 100MΩ OR MORE
CONTACT RESISTANCE : DC 2-4V 1A 100mΩ OR LESS
WITHSTAND VOLTAGE : AC 1500V FOR 1 Min
AMBIENT TEMPERATURE : 0℃ TO 125℃
ELECTRICAL LIFE : 50,000 CYCLES
8211PUSH SWITCH
SPECIFICATION:
RATING : 1A/250VAC~μ T55 (ENEC)
INSULATION RESISTANCE : DC 500V 100MΩ OR MORE
CONTACT RESISTANCE : DC 2-4V 1A 100mΩ OR LESS
WITHSTAND VOLTAGE : AC 1500V FOR 1 Min
AMBIENT TEMPERATURE : 0℃ TO 55℃
ELECTRICAL LIFE : 10,000 CYCLES
8213Push Switch
SPECIFICATION:
RATING : 0.2(0.2)A/250VAC (ENEC)
CIRCUIT : ON – (OFF)
INSULATION RESISTANCE : DC 500V 100MΩ OR MORE
CONTACT RESISTANCE : DC 2-4V 1A 100mΩ OR LESS
WITHSTAND VOLTAGE : AC 1500V FOR 1 Min
AMBIENT TEMPERATURE : -25℃ TO 125℃
ELECTRICAL LIFE : 10,000 CYCLES
